UNICLEAN SL L 200

‹ ›

Todas las figuras son ilustrativas y pueden variar ligeramente del producto real.

Chamber volume
- 200 litres
Basket volume
- 170 litres
Basic features
- Washing and drying on two optional stages
- 20 standard washing and disinfection programmes and 20 others ready to adapt to customer specifi cations
- Integrated water softener
- Cabinet for detergents
- Two up to four dosing pumps

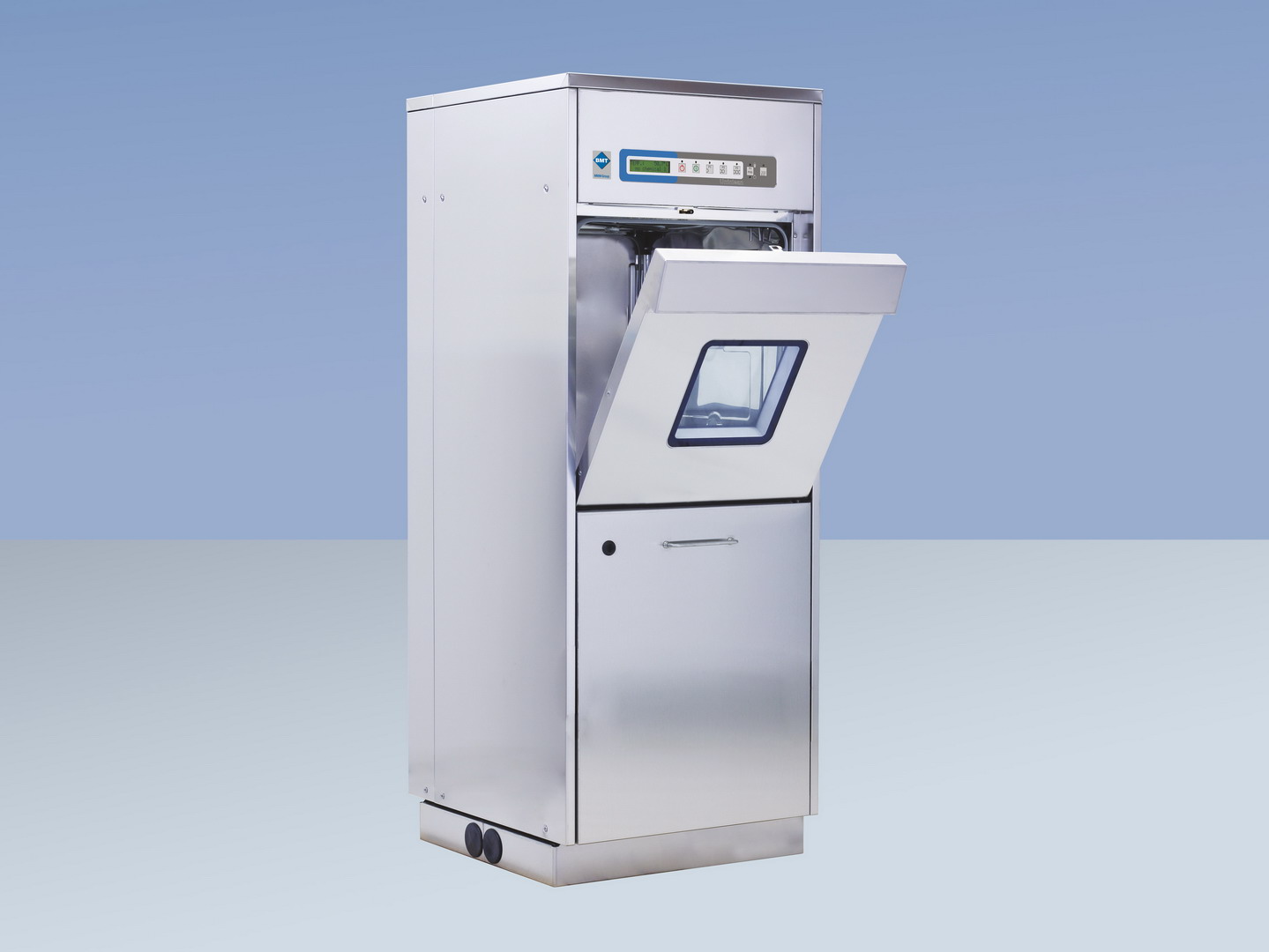

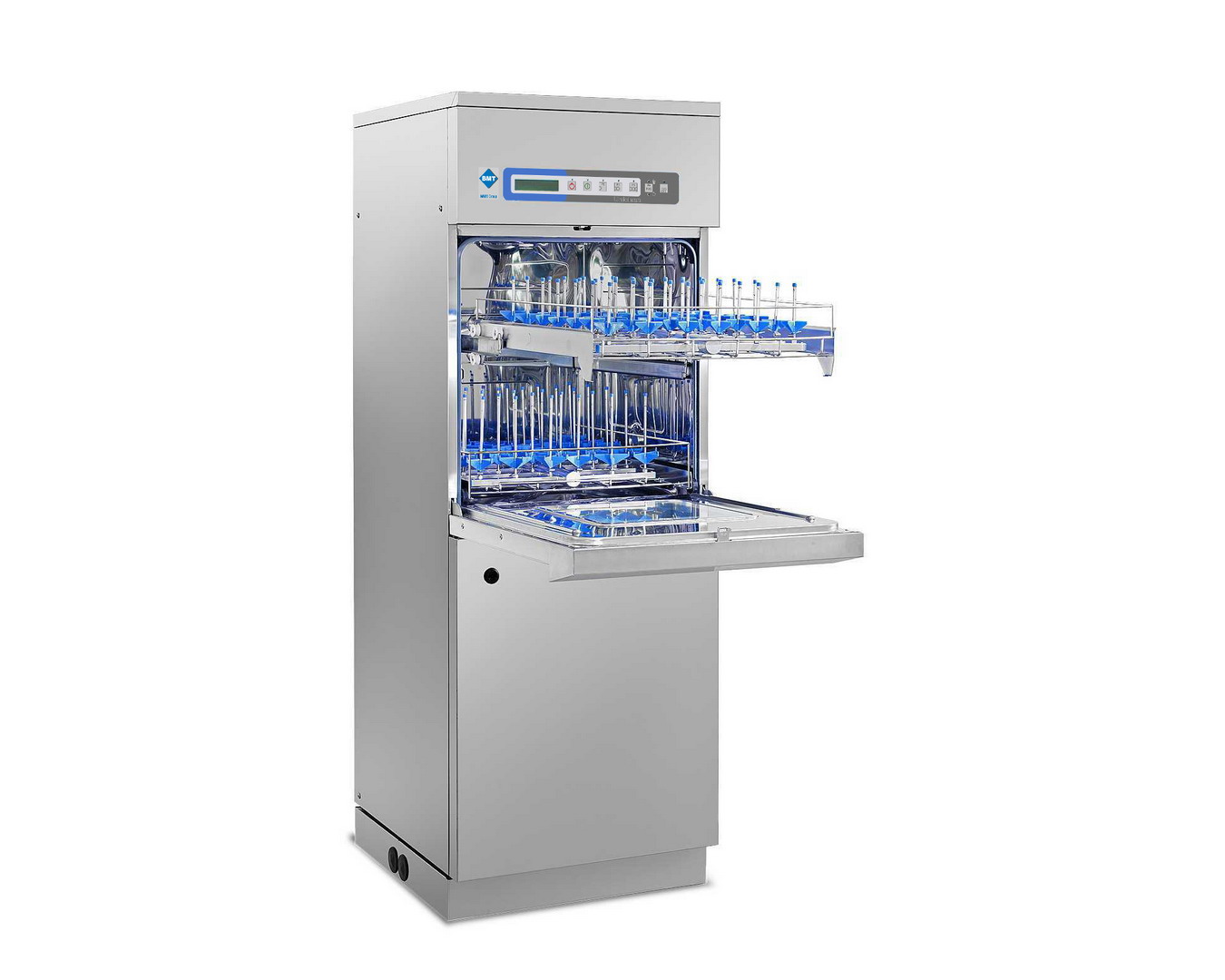

UNICLEAN SL L 200 is a small model of washing and disinfection device by BMT designed for large laboratories not requiring high washing performance. It is designed specifically for installation in limited space as a stand-alone device with manually open door. This small model includes built-in washing and air drying on two levels generally used at large devices, as well as water softener and steam condenser.

Estoy interesado en UNICLEAN SL L 200

General Information

Characteristics

small inner dimensions
washing and drying on two levels
two up to four dosing pumps
cabinet for detergents
built-in steam condenser
integrated water softener
output for external printer
two-line mono chromatic LCD display

Programs, documentation of batches

20 standard washing and disinfection programs and 20 others according to client´s specification
direct selection of the most frequently selected programs on the control panel:
P1 - short cycle, suitable for slightly polluted objects
P2 - standard cycle, suitable for generally polluted objects
P3 - intensive cycle, suitable for highly polluted objects
access to other pre-set program via the button P+
programs developed specially for various type of treated products, types of pollution or types of washing (bottles, blood, microbiological, oils and petrol, thermo chemical disinfection, enzymatic cleaning)
two short pre-set programs for simple rinsing of treated products with cold water or for drying of already washed objects
batches documentation – connection to printer or PC (RS 232) or to computer network (LAN) together with software application Ecosoft

Structure

washing and drying on two optional stages
stainless steel structure of the device and its outer shell (AISI 304)
chamber, washing arms and filter tanks of high-quality steel (AISI 316L)
manually controlled hinged chamber door of stainless steel with glass looking window for washing process monitoring
inclined chamber bottom avoids water accumulation in the chamber and it speeds up drainage and drying
rounded corners and edges of the chamber make washing easier and they avoid impurities sticking
built-in lockable lower case for up to three five-litre detergent jars

Control panel

built-in control systems – management and control of all the programs of the device and their phases
ergonomic control panel built in the device jacket, with black and white two line LCD display, it shows the program phases, current date and time, control temperature and regulation temperature, required temperature of the phase, value Ao – control and regulation, remaining time of the cycle and possible error messages of the device
Start and Stop push buttons on the main panel of the device
Drying push button for drying phase omission in standard selected cycle
every pressing of the control panel is indicated by a sound signal
current status of the device is indicated by eight functional LED diodes on the control panel
access to the cycle parameters is protected by a password according to ISO 15883-1/2

Use

Equipamiento opcional

Language version (display) – other than English - standard languages of control are: English, German, Spanish
Instructions for use: other than English (if available)
Instructions for service: other than English (if available)
Steam heating from central distribution - FD – shortening of time needed for washing water pre-heating
Tank for DI (demi) water pre-heating – reduction of total time of the program by shortening the time needed for water heating in the chamber
Another dosing pump – in case of using more chemicals it is possible to extend the standard configuration
by flow meter for reading the control of detergents dosing - higher standard of dosed quantity control
Auxiliary pump for DI (demineralised) water
Inner lighting of the chamber - for better washing process monitoring
HEPA filter of air H14 (spare part) – guarantee of safe device servicing
Electromagnetic valve of discharge cooling – in case of unsuitable waste piping it is possible to decrease discharged water temperature
Discharge pump – reduction of cycle time and elimination of problems with installation in case of unsuitable placement of discharge piping
Water conductivity sensor – arrangement of excellent process control in the course of final rinsing
USB port - simple service and device control
Device frame extended in 80 mm – placement of several washers in a line
ON-OFF main switch – simple control of the device
Additional discharge valve of the water pump
Thermo printer for process documentation – comfortable and well organised way of washed batch revision
Complementary stainless steel lining (price per 1 m2)
Water softener – arrangement of required quality and economic operation and installation problems solving
Water treatment
Packaging in plywood box
Increased heating performance 8000 W - shortening of time needed for washing water pre-heating
Ethernet connection
Remote administration software – simple displaying of operation cycles, easy administration of configured devices at CSSD
Bar code reader – the appropriate washing program is selected after bar code scanning
